| Supplies for Halterung HeavyDutyLong Schwerlast bis 70 Kg | Item No.: | Price | Availability | |  Halterung HeavyDuty Schwerlast bis 70 Kg ceiling bracket | HeavyDuty | 378,28 € |  | | Halterung HeavyDutyLong Schwerlast bis 70 Kg ceiling bracket | HeavyDutyLong | 396,13 € | | | Halterung Standard bis 10 Kg ceiling bracket length: 100-120mm | Halterung120 | 47,86 € | | | Halterung Big bis 45 Kg ceiling bracket length: 225 mm | Halterung45 | 85,80 € |  | | Halterung LONG bis 10 Kg ceiling bracket length: 250-1420mm | Halterung1200 | 80,71 € | | | Halterung TELE bis 10 Kg ceiling bracket length: 437-735mm | Halterung440-735 | 76,90 € | | | Halterung TELE Big bis 35 Kg Deckenhalterung Länge 600 - 900 mm | Halterung25 | 104,74 € | | | Halterung Wandhalterung bis 10 Kg wall bracket length 930-1530mm | Halterung930 | 114,56 € | | | Halterung LONG Verlängerung Extension | HalterungV | 30,80 € | | | Halterung HeavyDutyLong Schwerlast bis 70 Kg Ceiling bracket | Ceiling bracket | 46,71 € | |
 Universal projector air filter | 3mm or 5mm | 18.15 € | |
|
Halterung HeavyDutyLong Schwerlast bis 70 Kg
ceiling bracket - cage included |
|
|
Correct installation |
| |
| Incorrect |
Correct |
 |
The projector has to be installed very precisely and straight because otherwise you have to add the Keystone Correction which leads to image errors.
For this reason all of our ceiling brackets are adjustable in height. Thereby these errors can be avoided and you are provided with the maximun quality your projector is able to offer.
Ceiling brackets: 100-120 |
250-1420 |
437-735 mm
- Quickest processing of orders due to delivery ex stock.
- Reliable online shop since more than 21 years.
- Personal contact person.
- The shipping is registered and insured. You can stay informed about the processing of you order via the "Orders and Tracking" section
|
|
|
|
|

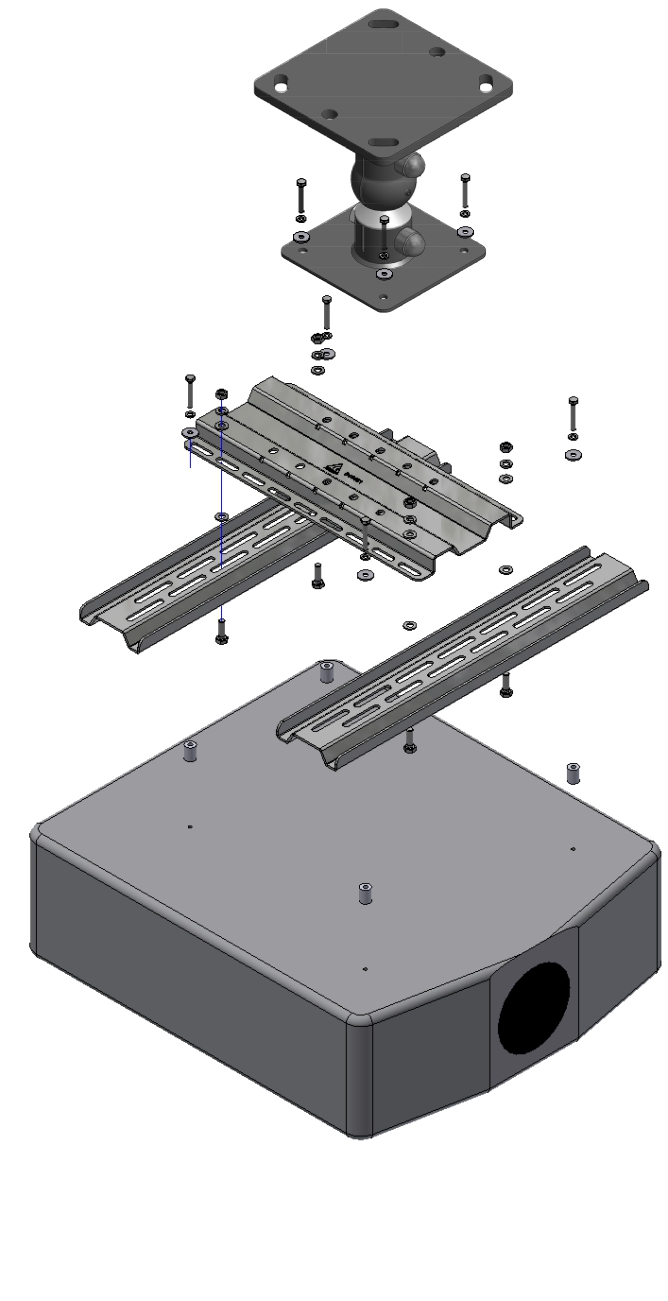

Thanks to the rail system, the mount is suitable for almost all projectors.
The Heavy Duty is a universal mount for projectors, suitable for secure and stable mounting of projectors up to 70Kg.
 The mount has a ball joint connection that allows the projector to be tilted 20 degrees in all directions. In addition, the joint head connection makes it particularly easy to disconnect the projector from the ceiling, as the connection can be easily released with an M10 screw.
The bracket has a fixed distance of 16.5 cm + 4.5 cm rail system from the ceiling.
Robust construction
High-quality workmanship and excellent stability and security. The sturdy, high-quality black design blends in perfectly with the ceiling tiles.
Movable

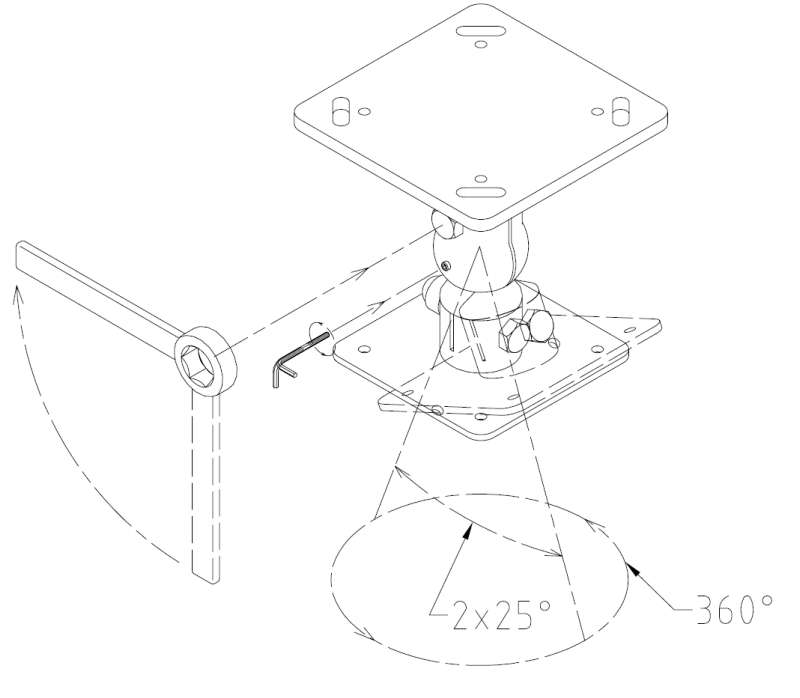

The swivel head connection allows for 360-degree rotation and a vertical tilt of 20 degrees.
Sloped ceilings?
The integrated tilt mechanism allows the bracket to be used with dome-like ceilings as well.
SAFE LOAD: 70 kg
COLOR: RAL 9005 black

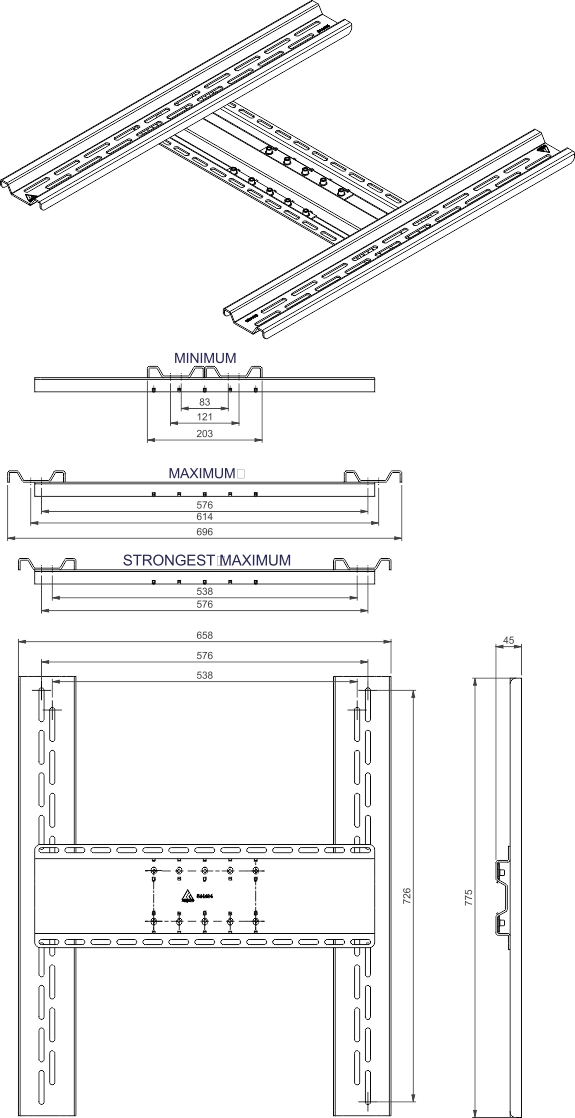

Mounting area:
"Heavy Duty" min. 200 x 85, max. 414 x 476 mm
"Heavy Duty Long" min. 200 x 85, max. 620 x 735 mm (With longer rails)
|
|
|
